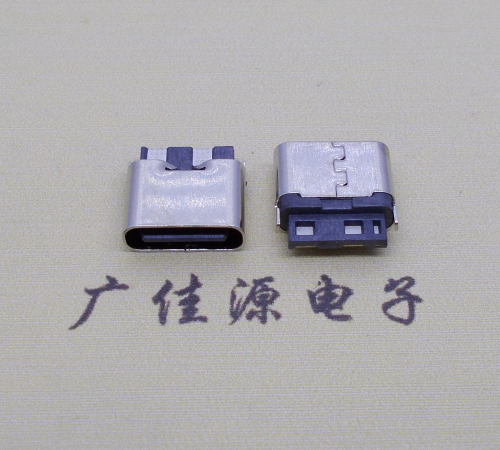

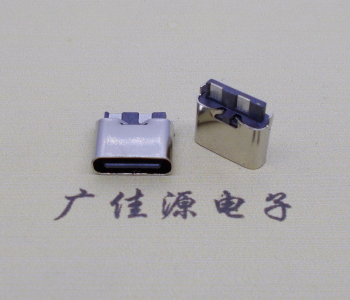

产品属于type c焊线式母座。仅支持充电功能,不带数据传输。type c2p母座的接口为椭圆形接口,支持正反盲插,外壳由铆合方式制成。产品使用材质:外壳为五金高强度不锈钢外壳,塑胶主体:环保耐高温lcp塑胶,针脚:高导铜。
NOTES:
1.MATERIAL:
MOLDING: LCP UL94 V-0
CONTACT:COPPER ALLOY,
GOLD PLATED Min ON CONTACT AREA, 100u"
Min TIN (LEAD FREE) ON SOLDER AREA,
SHELL: SUS304-H,T-0.30+0.03mm
50u" NICKEL PLATING OVER ALL.
2.MECHANICAL:
INSERTION: 5~20N.
EXTRACTION: 8~20N AFTER TEST.
DURABILTY: 10000 CYCLES
3.ELECTRICAL:
CURRENT: A FOR VBUS;
1.25A FOR GND PIN.
0.25A FOR OTHER.
WITHSTANDING VOLTAGE: 100V AC R.M.S.
CONTACT RESISTANCE: 40m0 MAX.
INSULATION RESISTANCE: 100M0 MIN,
4.ENVIRONMENTAL
TEMPERATURE RANGE -25'C ~ +85'C
