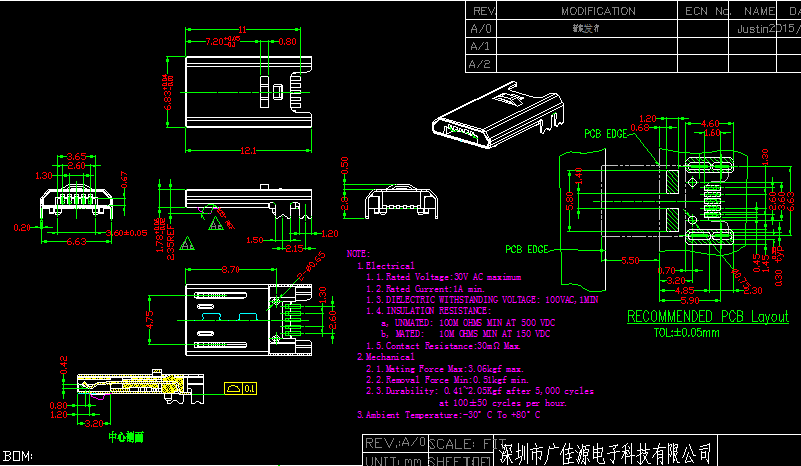

micro贴片公头材质说明:
1.Electrical
1.1.Rated Voltage:30V AC maximum
1.2.Rated Current:1A min.
1.3.DIELECTRIC WITHSTANDING VOLTAGE: 100VAC,1MIN
1.4.INSULATION RESISTANCE:
    a, UNMATED: 100M OHMS MIN AT 500 VDC
    b, MATED:   10M OHMS MIN AT 150 VDC
1.5.Contact Resistance:30m? Max.
2.Mechanical
2.1.Mating Force Max:3.06kgf max.
2.2.Removal Force Min:0.51kgf min.
2.3.Durability: 0.41~2.05Kgf after 5,000 cycles
             at 100±50 cycles per hour.
3.Ambient Temperature:-30°C To +80°C
