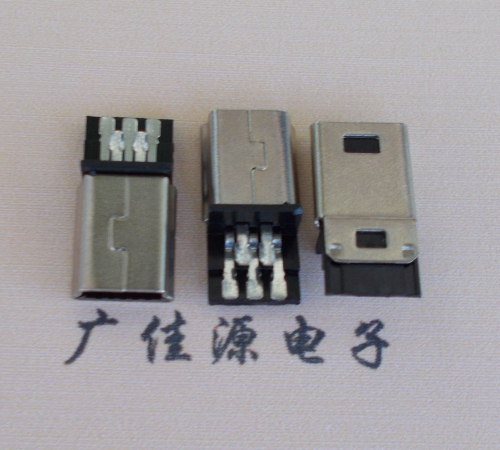

迷你Mini USB焊线8PIN公头

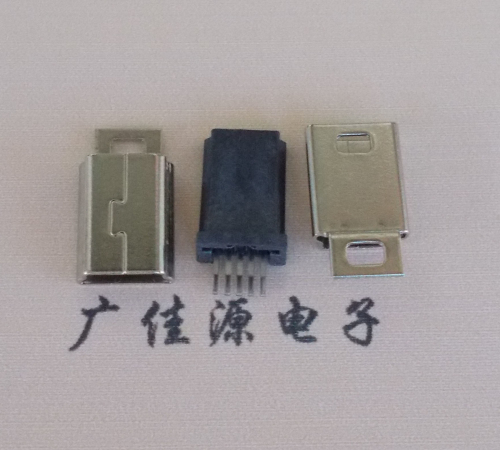

       Mini USB 5PIN公头焊线式前五后五

        Mini USB公头两件式直插铜壳

MiniUSB接口规格说明(Specifications):
1.0电气特性(Electrical):
1.1额定电流(Current Rating):
   0.5A/Contact Terminal
1.2额定电压(Voltage Rating):
   30V DC
1.3接触阻抗(Contact Resistance):
   30 Milliohms Max
1.4耐电压(Dielectnic Withstanding Voitage):
   500 V AC AT Sea Levol
1.5绝缘阻抗(Insulation Resistance):
   1000MEGA Ohms Min
2.0物理性能(Mechanical):
2.1插拔力(Cnnector Mate And Unmate Force):
   Mating Force:3.75kgf(Max)
   Unmating Force:1.02kgf(Min)
2.2端子保持力(Terminal Retenion):
   0.65kgf(Min)
3.0原材料(Matorial):
3.1塑胶(Housing):
   Hing Temperature Tnermaplastics
   UL 94V-0 LCP Black
3.2端子(Contact):
   Copper Alloy C5191
3.3外壳(Shell):
   Copper Alloy C2680
4.0电镀(Finish):
4.1端子(Contact):
   Piated Gold in Mating Area
   Sn≥100U″Ni≥40U″Au=1U″
4.2外壳(Shell):
   Nickel Plating
   Cu≥40U″Ni≥60U″
5.0Dimension marked﹡ msut be controlled in QIP.
小迷你USB接口相关用途有
1.影音产品:MP3、MP4、DVD.音响；
2.数码产品:数码相机、数码摄像机等；
3.遥控器:车辆、点卷门、家庭防盗产品之遥控器；
4.通讯产品:手机充电器、车载话机、电话机、楼宇设备、PDA等；
5.家用电器:电视机、微波炉、电饭煲、电风扇等；
6.安防产品:可视对讲机、监视器等；
7.玩具:电子玩具等；
8.电脑产品:摄像头等；
