MICRO USB接口防水型参数:

Notes:
1. Dimension shall be interpreted per ASME Y14.5M1994.
2. Dimension marked & should be checked by
   Q.C. and process, engineers and should also
   check the CPK data.
Specification:
1. Current Rating: 1.0 AMP
2. Voltage Rating: 30V AC,DC
3. Dielectric Strength: 500V AC RMS for 1 minute.
4. Contact Resistance:  30 m Max.
5. Insulator Resistance:500M Min. AT 250V DC.
6. Mating/Unmating cycles: 2000cycles
7. Temperature: -20°C to +60°C

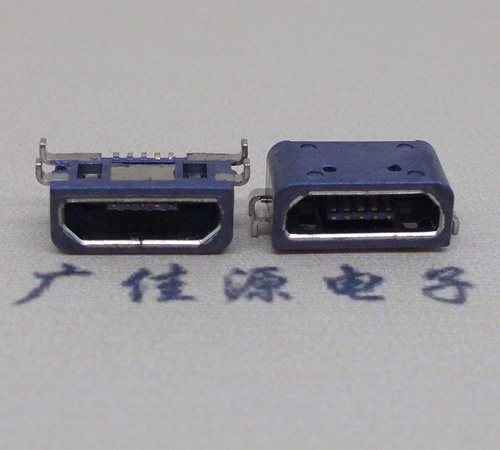

此款全新防水Micro USB连接器尺寸为10.9*6.0MM四脚插件,5pin SMT贴板,该款连接器坚固耐用的表面可将其外壳开口处密封,因此该款连接器可用于完全密封的IP 54手机。它还同时适用于A型和B型两种Micro USB插头,并支援普通USB和USB OTG。产品符合Micro USB 2.0规范,支援高速资料和电力传输。另外,SMD焊接支架也从连接器下方提供了额外的支撑力。
